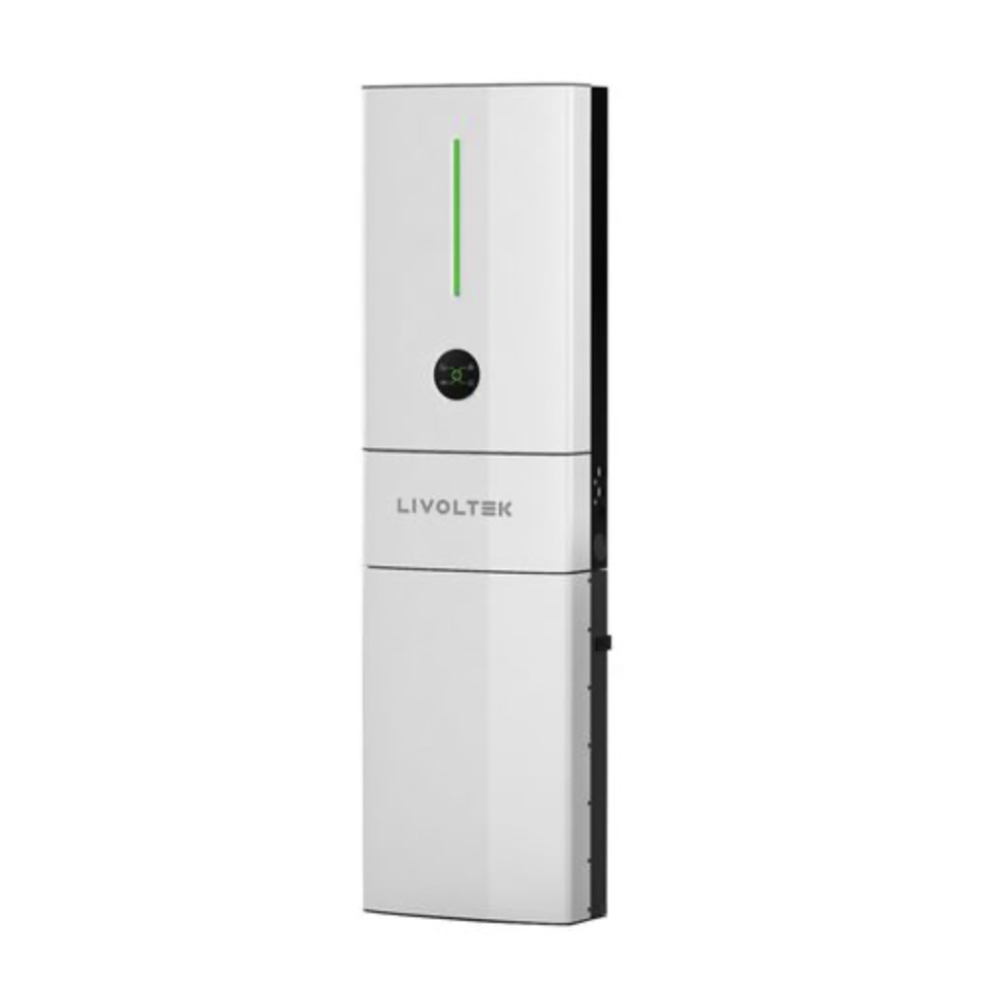

The LIVOLTEK hybrid inverter is committed to providing you with a green and intelligent one-stop energy storage solution, which realizes the independent management of photovoltaic power generation, lithium battery storage, smart electricity use, reliable grid connection and more. The compact design saves space, while the slim appearance fits your home’s aesthetics. The IP65 protection level and the plug-and-play installation methods are suitable for indoor and outdoor installation requirements in various scenes. The scalability of the battery modular system can be expanded to exactly your energy storage demand of the future.
Instillation not included.
Features:
– Ready-to-use
– Compact Design
– Aesthetic Design
– Modular
– A-Grade Cell Technology
– Environmentally Friendly
– Wide Variety of Markets
– Renewable Energy
– 5 Protection Features
– Built-in Battery Management System
– Connect with the LIVOLTEK app to monitor the status of the system remotely
– Mountable
– 5-year Warranty
Inverter Specifications:
AC Output @ Grid
– AC Input Voltage/Frequency: 186 ~ 290Vac / 50/60Hz
– Nominal AC Power: 5000W
– Nominal AC Current: 21.7A
– THD of AC Current:
EPS Output @ Off Grid:
– EPS Output Voltage/Frequency: 220Vac / 50/60Hz, Single Phase
– Continuous Output Power (@25C): 5kVA
– EPS Output Current: 21.7A
– Peak Power: 1.1 x Pnom, 10 Sec; 1.5 x Pnom, 100ms
– Power Factor: ~1 (Adjustable from 0.8 Leading to 0.8 Lagging)
– Waveform: Pure Sinusoidal Wave
– THD of AC Voltage:
Solar Input:
– Max. PV Voltage: 600V
– MPPT Voltage Range: 125-550V
– Max. PV Current: 14/14A
– Max. Short Circuit Current: 17.5/17.5A
– Strings Per MPP Tracker: 1
– No. of MPP Trackers: 2
Battery Input:
– Battery Type: Lithium Battery
– Battery Voltage: 40~60V
– Galvanic Isolation for Battery: Yes
– Max Charge Current: 100A
– BMS Communication: CAN/RS485
– Over Voltage Protection
– Under Voltage Protection
– Over Current Protection
– Short Circuit Protection
– Over Temperature Protection
Efficiency:
– Euro Efficiency: 97%
– Max. Efficiency: 97.80%
Battery Specification:
– Cell Type: LFP
– Total Energy: 5kWh
– Max. Depth of Discharge: 90%
– Recommended Depth of Discharge: 80%
– Nominal Voltage: 51.2V
– Operating Voltage Range: 40 – 58.4V
– Nominal Capacity: 100Ah
– Max. Charge Current: 50A
– Max. Discharge Current: 100A
– Max. Parallel Number: 5 Units
What’s in the box
1 x 5KW Solar Hybrid Inverter
1 x 5.12Kwh A-Grade LFP Battery
1 x Inverter Bracket
1 x EPS Plug for Backup Loads
1 x AC Plug for Grid
2 x Positive PV Plugs
2 x Negative PV Plugs
1 x Wi-Fi & Bluetooth Integrated Stick
1 x CT(Current Transformer) & CT Cable
1 x 16pin COM Connector for CT/Parallel/EV Charger
1 x Positive BAT Plugs
1 x Negative BAT Plugs
4 x Expansion Bolts for Wall-mounting Bracket (Split Application)
1 x Pack of Screws for the Mounting Bracket
1 x PE Terminal
1 x Water-proof RJ45 Connector for BMS
1 x Water-proof RJ45 Connector for DRM port
1 x Manual
